REPUBLIC OF CHINA NAVY (TAIWAN)
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| 寧海 [Ning Hai] | PCL1 | China SB, Kaohsiung | 1987 | stricken 2015-16 | |||
| 鞍海 [An Hai] | PCL2 | China SB, Kaohsiung | 1987-91 | stricken 2015-16 | |||
| PCL3 | China SB, Kaohsiung | 1987-91 | stricken 2015-16 | ||||
| PCL5 | China SB, Kaohsiung | 1987-91 | stricken 2015-16 | ||||
| PCL6 | China SB, Kaohsiung | 1987-91 | stricken 2015-16 | ||||
| PCL7 | China SB, Kaohsiung | 1987-91 | stricken 2015-16 | ||||
| PCL8 | China SB, Kaohsiung | 1987-91 | stricken 2015-16 | ||||
| PCL9 | China SB, Kaohsiung | 1987-91 | stricken 2015-16 |
|
Displacement standard, t |
100 |
|
Displacement full, t |
143 |
|
Length, m |
32.1 |
|
Breadth, m |
9.00 |
|
Draught, m |
1.80 |
|
No of shafts |
3 |
|
Machinery |
3 MTU 12 V396 TB93 diesels |
|
Power, h. p. |
5760 |
|
Max speed, kts |
40 |
|
Fuel, t |
diesel oil 36 |
|
Endurance, nm(kts) |
|
|
Armament |
1 x 1 - 40/60 Mk 3, 1 x 1 - 20/68 T75, 2 x 1 - 12.7/90, 2 DCR (4) |
|
Electronic equipment |
Decca radar, sonar |
|
Complement |
16 |
Project history: Patrol boats, designed by Vosper-QAF, Singapore.
Modernizations: None.
Naval service: No significant events.

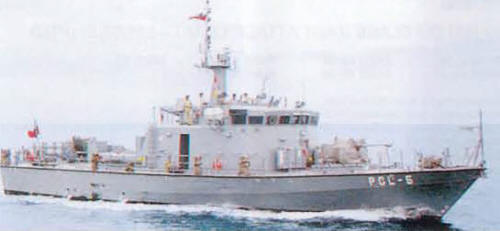

PCL5 2002
