REPUBLIC OF CHINA NAVY (TAIWAN)
Lung Chiang 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 龍江 [Lung Chiang] | PGG581, 1983- 601 | Tacoma Boatbldg, USA | 15.5.1978 | stricken 12.2011 | |||
| 綏江 [Sui Chiang] | PGG582, 1983- 602 | China SB Corp., Kaohsiung | 6.1983 | stricken 12.2011 |
|
Displacement standard, t |
218 |
|
Displacement full, t |
240 |
|
Length, m |
46.9 pp 50.1 oa |
|
Breadth, m |
7.26 |
|
Draught, m |
1.65 hull 3.05 max |
|
No of shafts |
3 |
|
Machinery |
CODOG: 3 General Motors 12V149 TI diesels / 3 AVCO-Lycoming TF-40A gas turbines |
|
Power, h. p. |
5400 / 15000 |
|
Max speed, kts |
36.2 |
|
Fuel, t |
diesel oil 42 |
|
Endurance, nm(kts) |
2700(12) |
|
Armament |
4 x 1 Hsiung Feng I SSM (4 Hsiung Feng), 1 x 1 - 76/62 OTO-Melara, 1 x 2 - 30/75 Emerlec-30, 2 x 1 - 12.7/90 |
|
Electronic equipment |
601: RAN-11, SPS-58C, RAN IIL/X radars, WD-2A ECM suite, 2x AV-2 decoy RL 602: RAN-11, SPS-58C, HR-76 radars, WD-2A ECM suite, 2x SMOC-4 decoy RL |
|
Complement |
38 |
Project history: The first of this class was built to Tacoma's design at their yard in Washington State, USA. The PSMM-5 design is developed from the US Asheville class FAC and is the same as the Korean Paek Ku class. There were thirteen planned from Taiwanese yards but they have been cancelled because of the unavailability of US or Italian missiles. The two ships built have been armed with the shorter-ranged Israeli Gabriel SSM, which Taiwan calls Hsiung Feng I.
Modernizations: 1990s, both: - 1 x 2 - 30/75; + 1 x 1 - 40/70 Bofors 564
Naval service: No significant events.

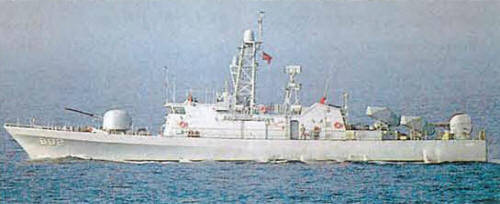

Sui Chiang 1997
