REPUBLIC OF CHINA NAVY (TAIWAN)
FABG41 2000
|
Names |
FABG1-3 FABG7-12 FABG14-21 FABG23-30 FABG32-39 FABG41-59 |
|
Builders |
China SB, Kaohsiung: FABG1-3, 7-12, 14-21, 23-30, 32-39, 41-59 |
|
Completed |
1979: FABG1-3, 7-12, 14-17 1980: FABG18-21, 23-30, 32-36 1981: FABG37-39, 41-59 |
|
Losses |
none |
|
Transfers |
Paraguay, 1994: FABG1 (Capitán Ortiz), FABG2 (Teniente Robles) Gambia, 2009: FABG7 (Taipei), FABG11 (Kunta Kinter), FABG29 (Kindy Camara), FABG32 (Musa Maliya Jammer) |
|
Discarding |
2010: FABG3 2012: FABG10 2012-2015: FABG8, 9, 12, 14-21, 23-28, 30, 33-39, 41-59 |
|
Displacement standard, t |
47 |
|
Displacement full, t |
56 |
|
Length, m |
22.9 |
|
Breadth, m |
5.50 |
|
Draught, m |
1.00 hull 2.02 propellers |
|
No of shafts |
2 |
|
Machinery |
2 MTU 12V331 TC92 diesels |
|
Power, h. p. |
2605 |
|
Max speed, kts |
40 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
700(32) |
|
Armament |
2 x 1 Hsiung Feng I SSM (2 Hsiung Feng I), 1 x 1 - 20/68 T75, 2 x 1 - 12.7/90 |
|
Electronic equipment |
CS/UPS-60X, HR-76C5 radars, WD-2A ECM suite, 2x AV-2 decoy RL |
|
Complement |
10 |
Project history: Design based closely on Israeli Dvora class. Aluminium hull. Early units had pylon mast and SSM launchers mounted astern, later units had lattice mast and SSM amidships with mount for 20mm gun aft.
Modernizations: None.
Naval service: No significant events.

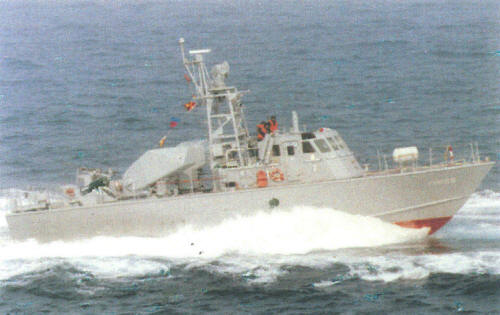

FABG56 2000
