REPUBLIC OF CHINA NAVY (TAIWAN)
|
Names |
FABG5, 6 |
|
Builders |
Israeli Aircraft Industries, Be'er Sheva, Israel: FABG5, 6 |
|
Completed |
1980: FABG5, 6 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
2003: FABG5, 6 |
|
Displacement standard, t |
47 |
|
Displacement full, t |
56 |
|
Length, m |
21.6 |
|
Breadth, m |
5.49 |
|
Draught, m |
0.94 hull 1.82 propellers |
|
No of shafts |
2 |
|
Machinery |
2 MTU 12V331 TC82 diesels |
|
Power, h. p. |
2860 |
|
Max speed, kts |
36 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1200(17) |
|
Armament |
2 x 1 Gabriel II SSM (2 Gabriel II), 1 x 1 - 20/68 T75, 2 x 1 - 12.7/90 |
|
Electronic equipment |
Decca 926, EL/M-2221 radars, Elop e/o director |
|
Complement |
10 |
Project history: Prototypes for the later Hai Ou desogn, equipped with Israeli weapons and sensors.
Modernizations: None.
Naval service: No significant events.

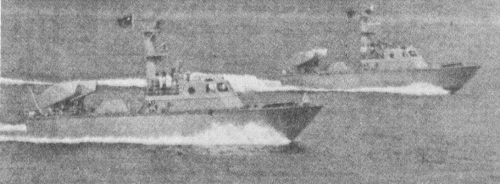

FABG5, 6 1980
