U5 1954
Abborren 1965
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| U1 | U1 | 234 | Kockums, Malmö | 1940 | 14.6.1941 | 5.1942 | stricken 7.1960 |
| U2 | U2 | 308 | Örlogsvarvet Karlskrona | 1940 | 16.5.1942 | 3.1943 | stricken 12.1961 |
| U3 | U3 | 309 | Örlogsvarvet Karlskrona | 1940 | 11.6.1942 | 11.1943 | stricken 11.1964 |
| U4, 1964- Forellen | U4, 1964- For | 266 | Kockums, Malmö | 1943 | 5.6.1943 | 4.1944 | stricken 7.1970 |
| U5, 1964- Abborren | U5, 1964- Abb | 267 | Kockums, Malmö | 1943 | 8.7.1943 | 6.1944 | stricken 7.1976 |
| U6, 1964- Siken | U6, 1964- Sik | 268 | Kockums, Malmö | 1943 | 18.8.1943 | 7.1944 | stricken 7.1974 |
| U7, 1964- Gäddan | U7, 1964- Gäd | 269 | Kockums, Malmö | 1943 | 25.11.1943 | 9.1944 | stricken 7.1973 |
| U8, 1964- Laxen | U8, 1964- La, Lax | 310 | Örlogsvarvet Karlskrona | 1943 | 25.4.1944 | 10.1944 | stricken 7.1976 |
| U9, 1964- Makrillen | U9, 1964- Ma, Mak | 311 | Örlogsvarvet Karlskrona | 1943 | 23.5.1944 | 11.1944 | stricken 7.1976 |
|
Displacement standard, t |
367 |
|
Displacement normal, t |
/ 450 |
|
Length, m |
49.6 |
|
Breadth, m |
4.70 |
|
Draught, m |
3.80 |
|
No of shafts |
2 |
|
Machinery |
1 MAN diesel-generator / 2 electric motors |
|
Power, h. p. |
1350 / |
|
Max speed, kts |
13.8 / 7.5 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 20/63 K/66 M40, 4 - 533 TT (3 bow, 1 stern, 8) |
| Electronic equipment | hydrophone |
|
Complement |
23 |
| Diving depth operational, m | 60? |
Project history: Submarines of smaller, in comparison with the predecessors, displacement. The decision on their building was accepted right after the Second World War beginnings. First of all they were intended for coast defence in case of landing of one of belligerent parties. Their construction was whenever possible simplified for acceleration and reduction in price of building. Unique Swedish single-hulled submarines (others were double-hulled). The so-called "American" machinery scheme became other difference of these submarines: diesel worked on the generator which, in turn, charged battery or gave a current on two main electric motors.
Modernizations: 1962, U4, U5; 1963, U7, U9; 1964, U6, U8: - 1 x 1 - 20/66, 1 - 533 TT (stern); + radar, sonar; CT was streamlined (submerged speed increased to 9kts), displacement became 430/460t; 2 MAN diesel-generators/ 2 electric motors, 1500/750hp, 14/9kts.
Naval service: no significant events.

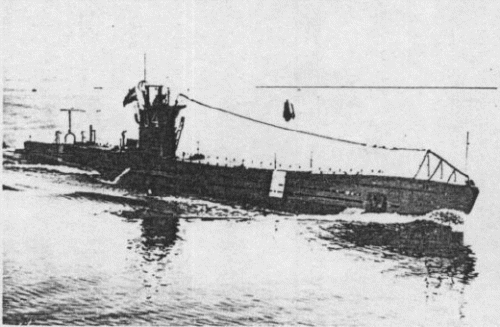

U4 1944

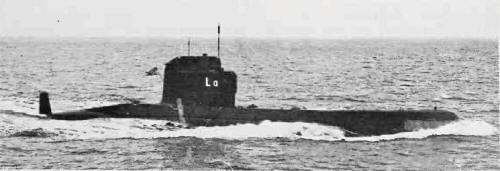

Laxen 1972
Many thanks to Wolfgang Stöhr for additional information on this page.
