similar Abborren 1933
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Laxen | L, Lx | 286 | Örlogsvarvet Karlskrona | 1914 | 1915 | stricken 1935 | |
| Gäddan | G, Gd | 287 | Örlogsvarvet Karlskrona | 1915 | 1915 | stricken 1931 |
|
Displacement standard, t |
|
|
Displacement normal, t |
140 / 170 |
|
Length, m |
26.7 pp 26.8 oa |
|
Breadth, m |
3.60 |
|
Draught, m |
3.00 |
|
No of shafts |
2 |
|
Machinery |
2 6cyl diesels / 2 electric motors |
|
Power, h. p. |
700 / 200 |
|
Max speed, kts |
8.8 / 6.6 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 1300(6) / 45(5) |
|
Armament |
1 - 450 TT (bow, 3) |
|
Complement |
10 |
| Diving depth operational, m | 30 |
Project history: 2nd class submarines for archipelago operations, development of Motala-built numbered submarines.
Modernizations: none.
Naval service: No significant events.

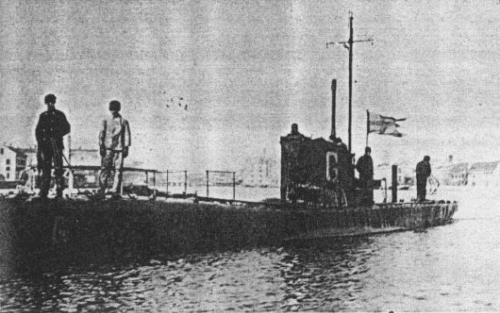

Gäddan 1915
Many thanks to Wolfgang Stöhr for additional information on this page.
