Hajen 1940
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Hajen | H, Hj | 124 | Kockums, Malmö | 1917 | 8.11.1917 | 5.1920 | stricken 3.1943 |
| Sälen | S, Sä | 125 | Kockums, Malmö | 1917 | 31.1.1918 | 6.1920 | stricken 7.1942 |
| Valrossen | V, Wa | 126 | Kockums, Malmö | 1917 | 16.4.1918 | 8.1920 | stricken 3.1943 |
|
Displacement standard, t |
392 / |
|
Displacement normal, t |
422 / 600 |
|
Length, m |
54.0 |
|
Breadth, m |
5.20 |
|
Draught, m |
3.50 |
|
No of shafts |
2 |
|
Machinery |
2 6cyl diesels / 2 electric motors |
|
Power, h. p. |
2000 / 700 |
|
Max speed, kts |
15.5 / 9 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 3300(10) / 54(6) |
|
Armament |
1 x 1 - 75/49 K/50 M12, 4 - 450 TT (bow, 8) |
|
Complement |
30 |
| Diving depth operational, m | 30? |
Project history: Increased version of Svärdfisken, Kockums design based on Weser AG drawings.
Modernizations: early 1930s, all: - 1 x 1 - 75/49; + 1 x 1 - 57/50 K/55 M89B.
Naval service: No significant events.

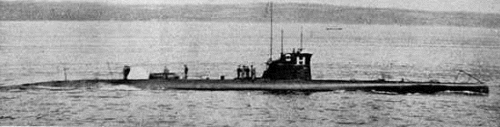

Hajen 1924
Many thanks to Wolfgang Stöhr for additional information on this page.
