Draken 1940
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Draken | 295 | Örlogsvarvet Karlskrona | 1925 | 21.10.1926 | 2.1929 | stricken 10.1948 | |
| Gripen | 296 | Örlogsvarvet Karlskrona | 1926 | 21.8.1928 | 3.1929 | stricken 6.1947 | |
| Ulven | 297 | Örlogsvarvet Karlskrona | 1928 | 6.3.1930 | 2.1931 | sunk 16.4.1943 |
|
Displacement standard, t |
667 |
|
Displacement normal, t |
/ 850 |
|
Length, m |
66.2 |
|
Breadth, m |
6.40 |
|
Draught, m |
3.30 |
|
No of shafts |
2 |
|
Machinery |
2 Götaverken diesels / 2 electric motors |
|
Power, h. p. |
1920 / 1000 |
|
Max speed, kts |
13.8 / 8.3 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 5600(10) / 38(5) |
|
Armament |
1 x 1 - 105/39 K/41 M25, 4 - 533 TT (2 bow, 2 stern, 8) |
| Electronic equipment | presumably hydrophone |
|
Complement |
35 |
| Diving depth operational, m | 60 |
Project history: Increased version of Bävern class with larger 533mm torpedoes.
Modernizations: 1930s, all: + 1 x 1 - 25/55 K/58 M32.
Naval service: Ulven was lost on German minefield 16.4.1943.

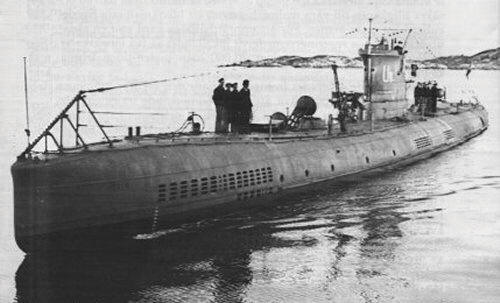

Ulven
Many thanks to Wolfgang Stöhr for additional information on this page.
