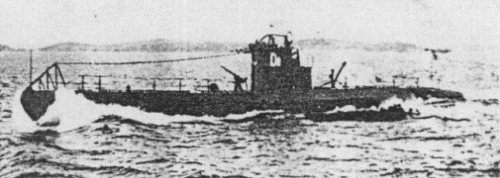

Delfinen 1940
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Delfinen | 176 | Kockums, Malmö | 1933 | 20.12.1934 | 4.1936 | stricken 2.1953 | |
| Nordkaparen | 177 | Kockums, Malmö | 1933 | 9.2.1935 | 10.1936 | stricken 2.1953 | |
| Springaren | 181 | Kockums, Malmö | 1933 | 27.4.1935 | 8.1937 | stricken 2.1953 |
|
Displacement standard, t |
540 |
|
Displacement normal, t |
/ 720 |
|
Length, m |
63.1 |
|
Breadth, m |
6.40 |
|
Draught, m |
3.40 |
|
No of shafts |
2 |
|
Machinery |
2 MAN diesels / 2 electric motors |
|
Power, h. p. |
1200 / 800 |
|
Max speed, kts |
15 / 9 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 57/50 K/55 M89B, 1 x 1 - 25/55 K/58 M32, 4 - 533 TT (3 bow, 1 stern, 8), 20 mines |
| Electronic equipment | hydrophone |
|
Complement |
34 |
| Diving depth operational, m | 60? |
Project history: Minelaying submarines created with usage of constructive decisions applied at designing of Draken and Valen classes. Normand-Fenaux minelaying system was used.
Modernizations: none.
Naval service: no significant events.
Delfinen 1937
Many thanks to Wolfgang Stöhr for additional information on this page.
