Illern 1940
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Bävern | B, Bä | 129 | Kockums, Malmö | 1918 | 5.3.1921 | 6.1921 | stricken 10.1944 |
| Illern | I, In | 291 | Örlogsvarvet Karlskrona | 1918 | 30.6.1921 | 1921 | collision 12.8.1943 |
| Uttern | U, Ut | 292 | Örlogsvarvet Karlskrona | 1918 | 25.7.1921 | 1921 | stricken 10.1944 |
|
Displacement standard, t |
429 |
|
Displacement normal, t |
472 / 650 |
|
Length, m |
57.0 |
|
Breadth, m |
5.80 |
|
Draught, m |
3.00 |
|
No of shafts |
2 |
|
Machinery |
2 6cyl diesels / 2 electric motors |
|
Power, h. p. |
2100 / 520 |
|
Max speed, kts |
15.2 / 8.2 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 3000(15) / 54(6) |
|
Armament |
1 x 1 - 57/50 K/55 M89B, 4 - 450 TT (bow, 8) |
|
Complement |
28 |
| Diving depth operational, m | 30? |
Project history: Advanced Hajen class in which for the account of slightly increased dimensions fuel stowage and surface endurance were increased. They become outdated to the beginning of WW II.
Modernizations: none.
Naval service: Illern was lost 12.8.1943 as a result of collision with m/s Birkaland in Kalmar straight, salvaged 1.9.1943 but never repaired and sold for BU in 1944.

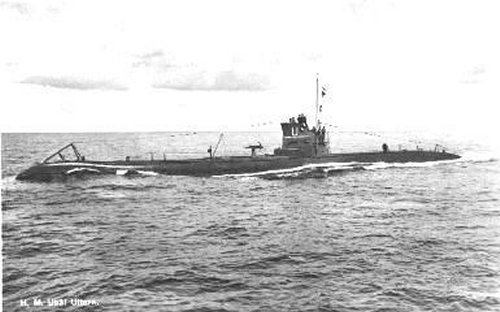

Uttern 1921
Many thanks to Wolfgang Stöhr for additional information on this page.
