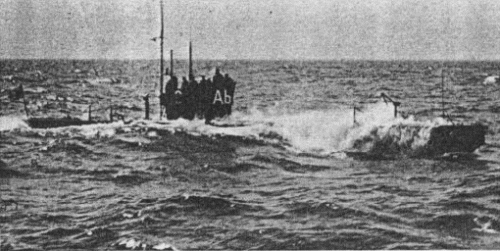

Abborren 1933
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Abborren | A, Ab | 289 | Örlogsvarvet Karlskrona | 25.5.1916 | 1.1917 | stricken 6.1937 | |
| Braxen | B, Br | 288 | Örlogsvarvet Karlskrona | 5.5.1916 | 1.1917 | stricken 6.1937 |
|
Displacement standard, t |
|
|
Displacement normal, t |
174 / 310 |
|
Length, m |
31.0 |
|
Breadth, m |
3.60 |
|
Draught, m |
3.10 |
|
No of shafts |
2 |
|
Machinery |
2 6cyl diesels / 2 electric motors |
|
Power, h. p. |
920 / 280 |
|
Max speed, kts |
9.5 / 7.4 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 1300(8) / 45(5) |
|
Armament |
2 - 450 TT (bow, 4) |
|
Complement |
14 |
| Diving depth operational, m | 30 |
Project history: Development of Laxen class with 2 TT.
Modernizations: none.
Naval service: No significant events.
Abborren 1920s
