| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Blenda | 241 | Lindholmen, Göteborg | 16.10.1874 | 5.1875 | repair ship 1906 | ||
| Disa | 256 | Örlogsvarvet Karlskrona | 21.4.1877 | 8.1877 | depot ship 1912, minelayer 1918, stricken 6.1925 |
|
Displacement normal, t |
496 |
|
Displacement full, t |
550 |
|
Length, m |
51.1 |
|
Breadth, m |
8.05 |
|
Draught, m |
3.00 |
|
No of shafts |
2 |
|
Machinery |
2 HC, boilers |
|
Power, h. p. |
590 |
|
Max speed, kts |
11.5 |
|
Fuel, t |
coal 98 |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 274/17 K/20 M1876, 1 x 1 - 122/20 K/22 M1873 |
|
Complement |
71 |

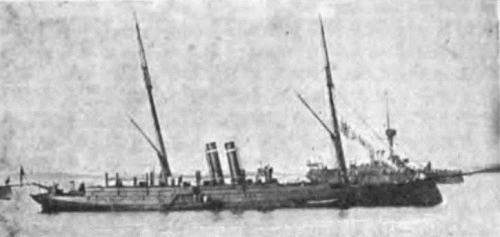

Project history: Coast defence gunboats.
Modernizations: 1880s, both: - 1 x 1 - 122/20; + 1 x 1 - 122/23 K/26 M1881
1892, Disa: armoured CT with 51mm sides was fitted; - 1 x 1 - 274/17, 1 x 1 - 122/23; + 1 x 1 - 152/25 K/28 M1883, 2 x 1 - 57/50 K/55 M1889
1918, Disa: + mines
Naval service: no significant events.
Many thanks to Wolfgang Stöhr for additional information on this page.
