similar Sköld 1871
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Ulf | 196 | Motala, Norrköping | 1873 | 1873 | stricken 1919 | ||
| Björn | 214 | Motala, Norrköping | 1874 | 1874 | stricken 1922 | ||
| Berserk | 213 | Motala, Norrköping | 1874 | 1874 | stricken 1919 | ||
| Sölve | 238 | Motala, Norrköping | 1875 | 5.1875 | stricken 1919 | ||
| Folke | 239 | Motala, Norrköping | 1875 | 1875 | stricken 1919 |
|
Displacement normal, t |
453 |
|
Displacement full, t |
460 |
|
Length, m |
32.3 pp 39.8 oa |
|
Breadth, m |
6.80 wl 8.02 max |
|
Draught, m |
2.52 normal 2.70 max |
|
No of shafts |
2 |
|
Machinery |
2 HC, boilers |
|
Power, h. p. |
155 |
|
Max speed, kts |
8 |
|
Fuel, t |
coal 19 |
| Endurance, nm(kts) | |
| Armour, mm | iron; belt: 76-64, turret: 418-356 |
|
Armament |
1 x 1 - 240/18 K/21 M69 |
|
Complement |
42 |
Project history: Monitors for the outer defence of the archipelagos, differed from Gerda class only in details. Ulf had her single gun on the aft deck to support possible retreat of squadron.
Modernizations: 1887, all: + 2 x 1 - 25/32 K/35 M77
1896-1909, all: CT with 254mm sides was added; - 1 x 1 - 240/18, 2 x 1 - 25/32; + 1 x 1 - 120/44 K/45 M94, 2 x 1 - 57/50 K/55 M89
Naval service: no significant events.

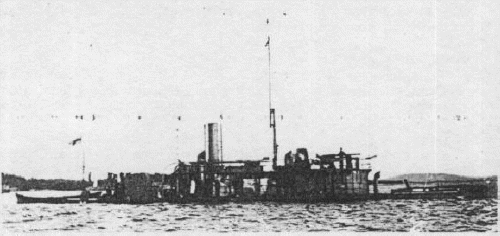

Ulf 1914
Many thanks to Wolfgang Stöhr for additional information on this page.
