Styrsö 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Styrsö | M11 | Karlskronavarvet, Karlskrona | 8.3.1996 | 21.9.1996 | in service (2019) | ||
| Spårö | M12 | Karlskronavarvet, Karlskrona | 30.8.1996 | 21.2.1997 | in service (2019) | ||
| Skaftö | M13 | 442 | Karlskronavarvet, Karlskrona | 20.1.1997 | 27.6.1997 | in service (2019) | |
| Sturkö | M14 | 443 | Karlskronavarvet, Karlskrona | 27.6.1997 | 19.12.1997 | in service (2019) |
|
Displacement standard, t |
175 |
|
Displacement full, t |
205 |
|
Length, m |
32.7 pp 36.0 oa |
|
Breadth, m |
7.90 |
|
Draught, m |
2.20 |
|
No of shafts |
2 |
|
Machinery |
2 Saab-Scania DSI-14 diesels |
|
Power, h. p. |
1100 |
|
Max speed, kts |
13 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1500(12) |
|
Armament |
2 x 1 - 7.6/90, AK-90 acoustic, EL-90 magnetic, mechanical minesweeping gear, Double Eagle USV (or towed sonar), control equipment for 2 SAM drones, 4x REMUS 100 USV |
|
Electronic equipment |
Bridgemaster radar, DF 1000 or SeaBat 8100 sonar (or USV), Mysko, 9MCM200 Erimis CCS |
|
Complement |
17 |
Project history: Classed as YSB (ystridfartyg bevakning = surface combat vessel). Also can be employed as patrol craft. Capable of minesweeping and minehunting. GRP hull, stealth construction.
Modernizations: None.
Naval service: No significant events.

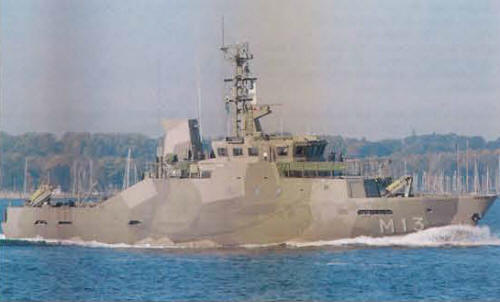

Skaftö 2007
Many thanks to Wolfgang Stöhr for additional information on this page.
