Mul15 1965
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Mul12, 1986- Arkosund | MUL12, 1986- Ark | 1952 | 1953 | stricken 2006 | |||
| Mul13, 1986- Kalmarsund | MUL13, 1986- Ksd | 1952 | 1953 | stricken 2003 | |||
| Mul14, 1986- Alnösund | MUL14, 1986- Aln | 1953 | 1954 | stricken 1996 | |||
| Mul15, 1986- Grundsund | MUL15, 1986- Gru | 1953 | 1954 | stricken 2011 | |||
| Mul16, 1986- Fårösund | MUL16, 1986- Får | 1956 | 1957 | stricken 1992 | |||
| Mul17, 1986- Skramsösund | MUL17, 1986- Smd | 1956 | 1957 | stricken 2002 | |||
| Mul18, 1986- Öresund, 1992- Fårösund | MUL18, 1986- Örd, 1992- Får | 1956 | 1957 | stricken 2012 | |||
| Mul19, 1986- Bårösund | MUL19, 1986- Bår | 338 | Oskarshamn SYd | 1956 | 1957 | stricken 2003 |
|
Displacement standard, t |
200 |
|
Displacement full, t |
245 |
|
Length, m |
29.0 pp 31.2 oa |
|
Breadth, m |
7.62 |
|
Draught, m |
3.10 |
|
No of shafts |
2 |
|
Machinery |
2 Nohab/Scania diesel-generators, 2 electric motors |
|
Power, h. p. |
460 |
|
Max speed, kts |
10.5 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 40/70 M48, 26t of mines |
| Electronic equipment | none |
|
Complement |
24 |
Project history: Small minelayers, belonged to Coastal Artillery.
Modernizations: 1980s, all: - 1 x 1 - 40/70; + 2 x 1 - 12.7/90, Decca RM1226C radar
Naval service: no significant events.

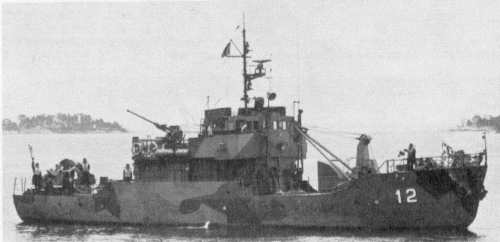

Mul12 1975

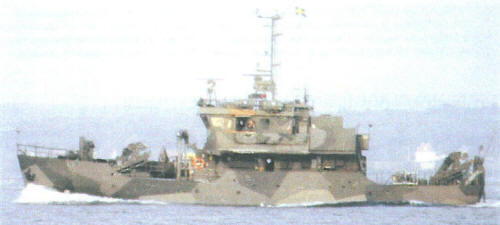

Bårösund 2003
Many thanks to Wolfgang Stöhr for additional information on this page.
