| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Hisingen | M43 | Holms, Råå | 1960 | 8.1960 | stricken 11.1999 | ||
| Blackan | M44 | Knippla Varv, Källö-Knippla | 1960 | 1.1961 | stricken 11.1999 | ||
| Dämman | M45 | Djupviks Varv | 1960 | 12.1960 | stricken 11.1999 | ||
| Galten | M46 | Skredsviks Varv, Gullmarsfjorden | 1960 | 11.1961 | stricken 11.1999 | ||
| Gillöga | M47 | 358 | Karlskrona Varvet | 1964 | 9.1964 | stricken 1.1998 | |
| Rödlöga | M48 | 359 | Karlskrona Varvet | 1964 | 10.1964 | stricken 1.1998 | |
| Svartlöga | M49 | 360 | Karlskrona Varvet | 1964 | 12.1964 | stricken 1.1998 |
|
Displacement standard, t |
130 |
|
Displacement full, t |
140 |
|
Length, m |
19.0 wl 22.0 oa |
|
Breadth, m |
6.40 |
|
Draught, m |
1.40 |
|
No of shafts |
1 |
|
Machinery |
M43: 2 Scania Vabis DSI-10R80 diesels others: 1 Scandia F35T-4MA diesel |
|
Power, h. p. |
M43: 370 others: 400 |
|
Max speed, kts |
9 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
|
|
Armament |
1 x 1 - 40/70 M48, mechanical minesweeping gear |
|
Electronic equipment |
Scanter 009 radar |
|
Complement |
10 |
Project history: Inshore minesweepers in wooden trawler hulls.
Modernizations: 1970s, all: - 1 x 1 - 40/70; + 1 x 1 - 20/70 Mk 7
1970s, all: - 1 x 1 - 20/70; + 1 x 1 - 12.7/90
1987, all: superstructure was rebuilt; - minesweeping gear; + equipment for mineclearance divers support
Naval service: No significant events.
Hisingen 1981
Dämman 1979

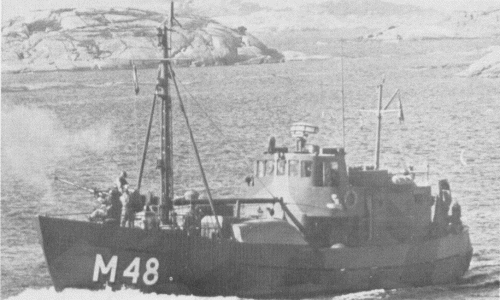

Rödlöga 1976

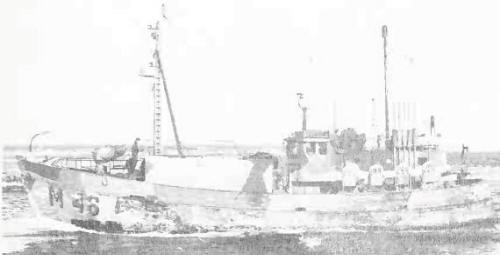

Galten 1987
Many thanks to Wolfgang Stöhr for additional information on this page.
