Carlskrona 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Carlskrona (ex-Karlskrona) | M04, 2010- P04 | 390 | Karlskronavarvet, Karlskrona | 1979 | 28.5.1980 | 19.3.1982 | command ship 2009, in service (2019) |
|
Displacement standard, t |
3130 |
|
Displacement full, t |
3300 |
|
Length, m |
97.5 pp 105.7 oa |
|
Breadth, m |
15.2 |
|
Draught, m |
4.00 |
|
No of shafts |
2 |
|
Machinery |
4 Nohab-Polar F212-D825 diesels |
|
Power, h. p. |
10560 |
|
Max speed, kts |
20 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
|
|
Armament |
2 x 1 - 57/70 SAK57 Mk 1, 2 x 1 - 40/70 Bofors SAK40/48 (315), 105 mines, helicopter deck |
|
Electronic equipment |
Scanter 009, Raytheon nav., Saturn, 2x 9LV200 Mk 2 radars, SQ-3D/SF sonar, AR-700 ECM suite, 2x Philax decoy RL |
|
Complement |
118 + 182 |
Project history: Also used as cadet training ship for the annual cruise with 136 cadets and 46 instructors onboard. There were two CIC, one for Hugin and one for Spica II class FAC.
Modernizations: 1980s: - Saturn radar; + Sea Giraffe 50HC radar
2009: - SQ-3D/SF sonar; + 9 GR600 radar
Naval service: No significant events.

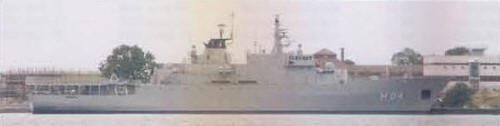

Carlskrona 2008
Many thanks to Wolfgang Stöhr for additional information on this page.
