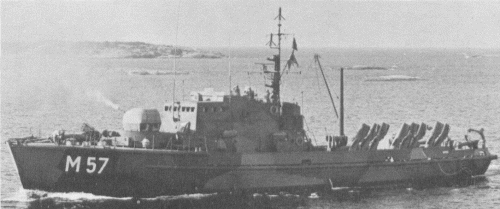

Arkö 1975
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Arkö | M57 | Oskarshamns Varv | 21.1.1957 | 6.1958 | stricken 1995 | ||
| Spårö | M58 | Oskarshamns Varv // Fisksätra Varv | 1.7.1957 | 7.1958 | stricken 6.1985 | ||
| Karlsö | M59 | Oskarshamns Varv // Fisksätra Varv | 20.12.1957 | 10.1958 | stricken 7.1984 | ||
| Iggö | M60 | Kalmar Varv // Fisksätra Varv | 1961 | 12.1961 | stricken 6.1986 | ||
| Styrsö | M61 | 348 | Kalmar Varv // Karlskrona Varvet | 15.9.1960 | 5.1962 | stricken 2.1989 | |
| Skaftö | M62 | Kalmar Varv // Fisksätra Varv | 1961 | 8.1962 | stricken 8.1990 | ||
| Aspö | M63 | 351 | Karlskrona Varvet | 1962 | 6.1962 | stricken 6.1989 | |
| Hasslö | M64 | 352 | Karlskrona Varvet | 1962 | 12.1962 | stricken 2.1989 | |
| Vinö | M65 | 354 | Karlskrona Varvet | 1962 | 6.1963 | stricken 7.1981 | |
| Vållö | M66 | Helsingborg Varfs // Fisksätra Varv | 1963 | 10.1963 | stricken 7.1980 | ||
| Nämdö | M67 | 355 | Helsingborg Varfs // Karlskrona Varvet | 1964 | 5.1964 | stricken 2009 | |
| Blidö | M68 | 356 | Helsingborg Varfs // Karlskrona Varvet | 1963 | 11.1964 | stricken 1995 |
|
Displacement standard, t |
272 |
|
Displacement full, t |
300 |
|
Length, m |
39.9 pp 44.0 oa |
|
Breadth, m |
7.00 |
|
Draught, m |
2.40 |
|
No of shafts |
2 |
|
Machinery |
2 Mercedes-Benz MTU 12V493 diesels |
|
Power, h. p. |
1600 |
|
Max speed, kts |
14.5 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 40/70 M48, 1 x 6 - 57 RFL, mechanical, magnetic, acoustic minesweeping gear |
| Electronic equipment | radar |
|
Complement |
25 |
Project history: Coastal minesweepers, wooden hulls.
Modernizations: None.
Naval service: No significant events.
Arkö 1979
Many thanks to Wolfgang Stöhr for additional information on this page.
