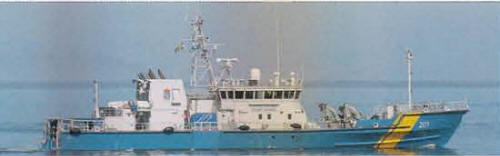

Kbv201 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Kbv201 | Kockums, Karlskrona | 10.2001 | in service (2019) | ||||
| Kbv202 | Kockums, Karlskrona | 25.1.2002 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
450 |
|
Length, m |
50.0 pp 52.0 oa |
|
Breadth, m |
8.60 |
|
Draught, m |
2.80 |
|
No of shafts |
2 |
|
Machinery |
1 Deutz 16V620 diesel + 1 Deutz 12V616 diesel |
|
Power, h. p. |
7070 |
|
Max speed, kts |
22 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 2000(16) |
|
Armament |
small arms |
| Electronic equipment | 2x radars |
|
Complement |
9 |
Project history: Coast Guard. Class 'A'. Have spilled-oil recovery system with two storage tanks. High-speed RIB is launched via stern ramp.
Modernizations: none.
Naval service: No significant events.
Kbv201 2007
