| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Karlskrona | TV171, 1986- Kbv171 | Karlskronavarvet | 11.1979 | 3.9.1980 | to Belgium 9.1998 (Stern) | ||
| Nynäshamn, 1991- Skredsvik | TV172, 1986- Kbv172, 1991- A262 | Karlskronavarvet | 13.9.1980 | 10.1981 | to Navy as mine countermeasures support ship 1991, stricken 2006 |
|
Displacement standard, t |
|
|
Displacement full, t |
375 |
|
Length, m |
46.0 pp 49.9 oa |
|
Breadth, m |
8.52 |
|
Draught, m |
2.40 |
|
No of shafts |
2 |
|
Machinery |
2 Hedemora V16A/15 diesels |
|
Power, h. p. |
4480 |
|
Max speed, kts |
20 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 3000(12) |
|
Armament |
helicopter deck |
| Electronic equipment | 2x Decca radars, Subsea sonar |
|
Complement |
12 |
Project history: Coast Guard. Class 'A'. GRP hull. Firefighting monitor can be replaced by 40mm gun, mine rails can be fitted.
Modernizations: none.
Naval service: Skredsvik was transferred to Navy and in February 1993 was commissioned as mine clearance divers support ship and command vessel for mine countermeasures operations.

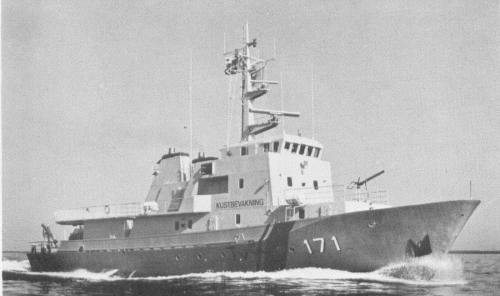

Karlskrona 1980
