Jägaren 1940
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Jägaren | V21, 41 | 299 | Örlogsvarvet Karlskrona | 1.12.1932 | 1934 | stricken 1.1959 | |
| Kaparen | V22, 42 | 300 | Örlogsvarvet Karlskrona | 3.3.1933 | 1934 | stricken 1.1959 | |
| Snapphanen | V23, 43 | 301 | Örlogsvarvet Karlskrona | 2.11.1934 | 1936 | stricken 1.1959, to Guatemala 1959 (José Francisco Barrundia) | |
| Väktaren | V24, 44 | 302 | Örlogsvarvet Karlskrona | 25.4.1934 | 1935 | stricken 1.1959 |
|
Displacement standard, t |
250 |
|
Displacement full, t |
310 |
|
Length, m |
51.9 |
|
Breadth, m |
6.00 |
|
Draught, m |
2.80 |
|
No of shafts |
2 |
|
Machinery |
1 set de Laval geared steam turbines, 2 Vanson boilers |
|
Power, h. p. |
3600 |
|
Max speed, kts |
23 |
|
Fuel, t |
oil 50 |
| Endurance, nm(kts) | |
|
Armament |
2 x 1 - 75/56 K/60 M28, 2 x 1 - 25/55 K/58 M32, 2 DCT |
|
Complement |
41 |
Project history: Unique purpose-built patrol ships of WWII Swedish navy. Wrangel class destroyers were chosen as a starting point at designing which dimensions were significantly decreased. Order was given out in 1927.
Modernizations: none.
Naval service: no significant events.

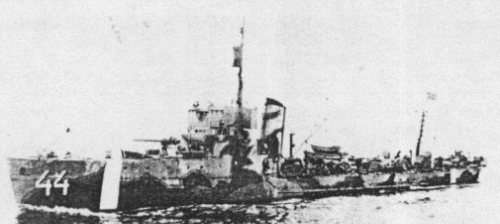

Vöktaren 1944
Many thanks to Wolfgang Stöhr for additional information on this page.
