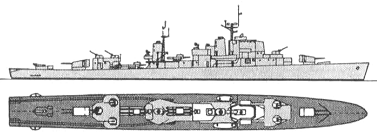

Östergötland 1960

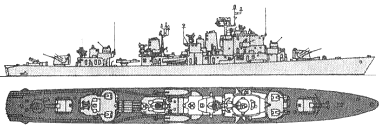

Östergötland 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Östergötland | 20, 1966- J20 | Götaverken, Göteborg | 1.9.1955 | 8.5.1956 | 3.3.1958 | stricken 7.1982 | |
| Södermanland | 21, 1966- J21 | 487 | Eriksberg, Göteborg | 1.6.1955 | 28.5.1956 | 27.7.1958 | stricken 7.1982 |
| Gästrikland | 22, 1966- J22 | Götaverken, Göteborg | 1.10.1955 | 6.6.1956 | 14.1.1959 | stricken 7.1982 | |
| Hälsingland | 23, 1966- J23 | 491/391 | Eriksberg & Kockums, Malmö | 1.10.1955 | 14.1.1957 | 17.6.1959 | stricken 7.1982 |
|
Displacement standard, t |
2150 |
|
Displacement full, t |
2600 |
|
Length, m |
107.0 wl 112.0 oa |
|
Breadth, m |
11.2 |
|
Draught, m |
3.70 |
|
No of shafts |
2 |
|
Machinery |
2 sets de Laval geared steam turbines, 2 Babcock & Wilcox boilers |
|
Power, h. p. |
47000 |
|
Max speed, kts |
35 |
|
Fuel, t |
oil 330 |
| Endurance, nm(kts) | 3000(20) |
|
Armament |
2 x 2 - 120/50 M42, 7 x 1 - 40/70 M48, 1 x 6 - 533 TT, 1 x 3 - 305 M51 Squid ASWRL, 60 mines |
| Electronic equipment | Saturn, M45 radars, sonar |
|
Complement |
244 |
Project history: Voted 1953.
Modernizations: 1965, Gästrikland; 1967, Södermanland; 1968, Hälsingland; 1971, Östergötland: - 3 x 1 - 40/70; + 1 x 4 Rb07 SAM (16 Seacat), M44 radar
Naval service: No significant events.

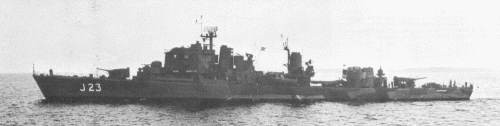

Hälsingland 1980
Many thanks to Wolfgang Stöhr for additional information on this page.
