Klas Horn 1940
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Klas Horn | 3 | 165 | Kockums, Malmö | 1929 | 13.6.1931 | 9.1932 | stricken 8.1958 |
| Klas Uggla | 4 | 298 | Örlogsvarvet Karlskrona | 1929 | 18.6.1931 | 8.1932 | sunk 17.9.1941 |
|
Displacement standard, t |
1004 |
|
Displacement full, t |
~1190 |
|
Length, m |
91.0 pp 92.4 oa |
|
Breadth, m |
8.90 |
|
Draught, m |
3.70 max |
|
No of shafts |
2 |
|
Machinery |
2 sets de Laval geared steam turbines, 3 Penhoët boilers |
|
Power, h. p. |
26000 |
|
Max speed, kts |
37 |
|
Fuel, t |
oil 170 |
| Endurance, nm(kts) | 1600(20) |
|
Armament |
3 x 1 - 120/44 K/45 M24B, 2 x 1 - 40/39 M22, 2 x 3 - 533 TT, 2 DCT, 2 DCR, 20 mines |
| Electronic equipment | presumably hydrophone |
|
Complement |
119 |
Project history: Development of Ehrensköld class, the order for building was given out in 1928. They were differed by more powerful machinery, insignificant increased hull length and TTs of new model.
Modernizations: mid-1930s, both: - 2 x 1 - 40/39; + 2 x 1 - 40/56 K/60 M32
1939, both: new boilers were installed; - 2 x 1 - 40/56; + 2 x 2 - 25/55 K/58 M32
Naval service: Both ships were lost 17.9.1941 in Haarsfjärden naval base near Stockholm as a result of explosion on destroyer Klas Uggla and subsequent fire. Klas Horn subsequently was salvaged and after repair was commissioned in December, 1943.

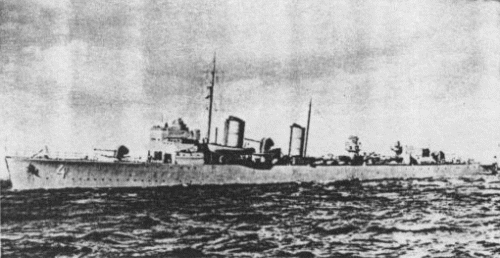

Klas Uggla 1932
Many thanks to Wolfgang Stöhr for additional information on this page.
