Names |
TV102 Göteborg, 1986- Kbv102 Göteborg TV103 Simrishamn, 1986- Kbv103 Simrishamn TV104, 1986- Kbv104 TV105, 1986- Kbv105 |
|
Builders |
Djupviks, Tjörn: TV102-105 |
|
Commissioned |
1972-1973: TV102-105 |
|
Losses |
None |
|
Transfers |
None |
|
Discarding |
2001: Kbv102, 105 2002: Kbv104 2013: Kbv103 |
|
Displacement standard, t |
|
|
Displacement full, t |
53 |
|
Length, m |
26.7 |
|
Breadth, m |
5.23 |
|
Draught, m |
1.13 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 8V331 TC82 diesels |
|
Power, h. p. |
1866 |
|
Max speed, kts |
22 |
|
Fuel, t |
diesel oil 11 |
| Endurance, nm(kts) | 1000(15) |
|
Armament |
small arms |
| Electronic equipment | radar |
|
Complement |
6 |
Project history: Coast Guard. Aluminium hull, class 'A'.
Modernizations: 1987, Kbv105: re-engined with 2 Cummins KTA38M diesels (2100hp)
Naval service: no significant events.

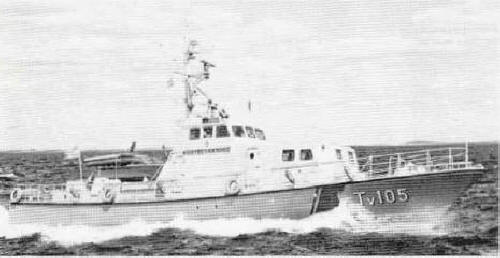

TV105 1980s

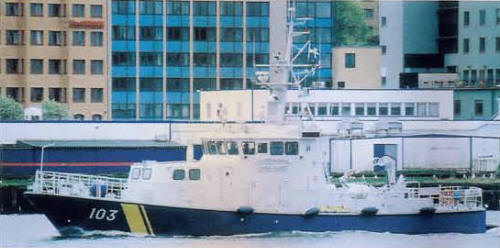

Kbv103 2007
