Names |
Sväv-Arne |
|
Builders |
Karlskronavarvet: Sväv-Arne |
|
Commissioned |
1998: Sväv-Arne |
|
Losses |
None |
|
Transfers |
none |
|
Discarding |
2010: Sväv-Arne |
|
Displacement standard, t |
|
|
Displacement full, t |
26 |
|
Length, m |
20.6 |
|
Breadth, m |
8.60 |
|
Draught, m |
0.35 // 0 |
|
No of shafts |
2 air propellers, 2 lift fans |
|
Machinery |
2 Deutz BF12L513C diesels |
|
Power, h. p. |
1050 |
|
Max speed, kts |
50 light 35 loaded |
|
Fuel, t |
diesel oil 4 |
| Endurance, nm(kts) | 600(30) |
|
Armament |
1 x 1 - 12.7/90 |
| Military load | 50 troops, 1 tracked vehicle |
| Electronic equipment | radar |
|
Complement |
3 |
Project history: Coastal artillery. M-10X design of ABS Hovercraft (UK). Planned order for six more was cancelled. GRP carbon fiber hull with vinyl laminate, superstructure was kevlar re-inforced.
Modernizations: none.
Naval service: no significant events.

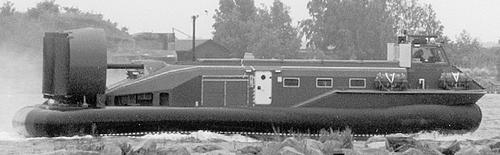

Sväv-Arne 1998
