Names |
801 - 947 |
|
Builders |
Dockstavarvet, Docksta, Gotlands varvet: 801-947 |
|
Commissioned |
1989: 801, 802 1991: 803-807 1992: 808-814 1993-1994: 815-877 1994-1997: 878-907 1998-2003: 908-947 |
|
Losses |
None |
|
Transfers |
none |
|
Discarding |
2004: 801, 802 2012-2015: 803-805, 807, 809, 812-814, 843, 867, 894, 915 2016-2017: 808 in service (2019): 806, 808, 810, 811, 815-842, 844-866, 868-893, 895-914, 916-947 |
|
Displacement standard, t |
13 |
|
Displacement full, t |
20 |
|
Length, m |
13.0 pp 15.9 oa |
|
Breadth, m |
3.80 |
|
Draught, m |
1.00 |
|
No of shafts |
2 waterjets |
|
Machinery |
2 Volvo-Scania DSI14V8 diesels |
|
Power, h. p. |
1250 |
|
Max speed, kts |
40 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 250(30) |
|
Armament |
1 x 2 - 12.7/90, 1 x 1 - 12.7/90 |
| Military load | 21 troops or 2.8 t cargo or 6 M-9 mines |
| Electronic equipment | Decca 110 radar |
|
Complement |
3 |
Project history: Coastal artillery. Aluminium hull, landing ramp fwd.
Modernizations: none.
Naval service: no significant events.
821 2006

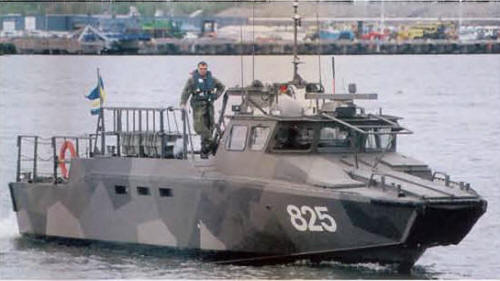

825 2007
