Names |
601 602 603 604 Almo 605 606 Frigg 607 608 Nattarö 609 610 Ambjorn 611 612 651 652 653 Donsö 654 655 656 657 Bollö |
|
Builders |
Djupviks, Tjörn, Oskarhamns, Farösund: 601-612, 651-657 |
|
Commissioned |
1978: 601, 602 1984: 603-605 1985: 606 1986: 607, 608, 610, 611, 651-654 1987: 609, 612, 655-657 |
|
Losses |
None |
|
Transfers |
None |
|
Discarding |
2001: 601, 602 2006-2007: 607, 611, 612, 651, 652, 654, 656, 657 2015: 603 2016: 604-606, 609, 610, 653, 655 in service (2019): 608 |
|
Displacement standard, t |
20 |
|
Displacement full, t |
53 |
|
Length, m |
20.0 pp 21.0 oa |
|
Breadth, m |
7.20 |
|
Draught, m |
0.70 |
|
No of shafts |
2 |
|
Machinery |
2 Saab-Scania DSI11/40-M20 diesels |
|
Power, h. p. |
340 |
|
Max speed, kts |
10 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
none |
| Military load | 25 t cargo or 30 t liquid |
| Electronic equipment | Decca RM914C radar |
|
Complement |
Project history: Coastal artillery. Classified as support boats.
Modernizations: none.
Naval service: no significant events.

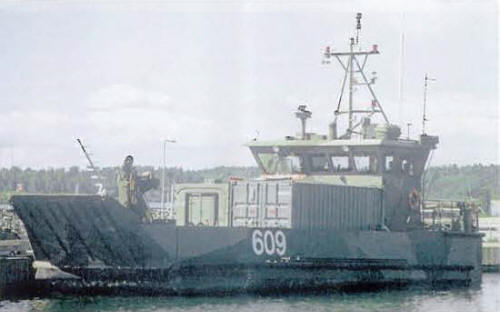

609 2004
