T42 1965
|
Names |
T42, 1977- V01 Skanör T43, 1977- V02 Smyge T44, 1977- V03 Arild T45, 46 T47, 1983- V05 Öregrund T48, 1983- V06 Slite T49 T50, 1983- V07 Sandhamn T51, 1983- V08 Lysekil T52 - 56 |
|
Builders |
Kockums, Malmö: T42 - 52, 56 Kockums, Malmö // Örlogsvarv Karlskrona: T53 - 55 |
|
Commissioned |
1955 - 1957: T42 - 56 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
1983: T45, 46, 49, 52 - 56 1989: V01 Skanör, V02 Smyge 1991: V03 Arild 1994: V05 Öregrung, V06 Slite, V07 Sandhamn, V08 Lysekil |
|
Displacement standard, t |
40 |
|
Displacement full, t |
45 |
|
Length, m |
23.0 |
|
Breadth, m |
5.90 |
|
Draught, m |
1.40 |
|
No of shafts |
3 |
|
Machinery |
3 Isotta-Fraschini 184C petrol motors |
|
Power, h. p. |
4500 |
|
Max speed, kts |
45 |
|
Fuel, t |
petrol |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 40/70 M48, 2 - 533 TT, 1 x 12 - 57 RFL |
| Electronic equipment | Scanter 009 radar |
| Complement |
16 |
Project history: All-welded steel hulls. Hulls of T42-44 were used for building of patrol boats of Skanör class.
Modernizations: 1977, Skanör, Smyge, Arild; 1983, Öregrund, Slite, Sandhamn, Lysekil: one shaft was removed (6000hp, 27kts); - 2 - 533 TT
Naval service: No significant events.

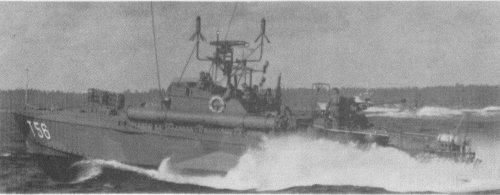

T56 1975

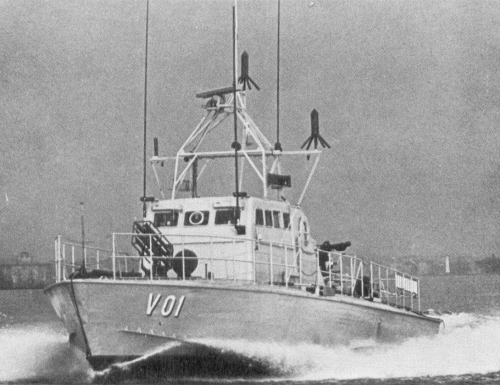

Skanör 1976

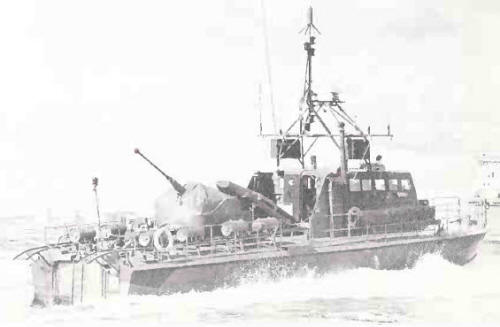

Lysekil 1988
