similar Hugin 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Jägaren | P151, 1977- P150, 2008- V150 | Bergens MV, Bergen, Norway | 8.6.1972 | 24.11.1972 | stricken 2002, re-instated 2008, preserved 4.2016 |
|
Displacement standard, t |
120 |
|
Displacement full, t |
150 |
|
Length, m |
33.6 pp 36.6 oa |
|
Breadth, m |
6.30 |
|
Draught, m |
1.70 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 20V672 TB90 diesels |
|
Power, h. p. |
7200 |
|
Max speed, kts |
35 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 550(35) |
|
Armament |
6 x 1 RB-11 SSM (6 Penguin Mk 1) or (2 x 1 RB-11 SSM (2 Penguin Mk 1), 24 mines) or (2 x 1 RB-11 SSM (2 Penguin Mk 1), 2 DCR), 1 x 1 - 57/70 SAK57 Mk 1 |
| Electronic equipment | Scanter 009, 9LV200 Mk 2 radars, SQ3D/SF sonar |
| Complement |
22 |
Project history: Similar to Norwegian Snögg class.
Modernizations: 1988: diesels were replaced by 2 Cummins KTA50-M (2800hp, 20kts, 550(20)nm), complement became 15; - 6 x 1 RB-11 SSM, 1 x 1 - 57/70, PEAB 9LV200 Mk 2 radar suite; + 1 x 1 - 40/70 Bofors 315, mines, nav. radar
2008: - 1 x 1 - 40/70; + 1 x 1 - 40/70 Sea Trinity, oil recovery equipment
Naval service: Jägaren was retired by navy in 2002 but reinstated by Coastal Artillery (Naval Brigade) in 2008.

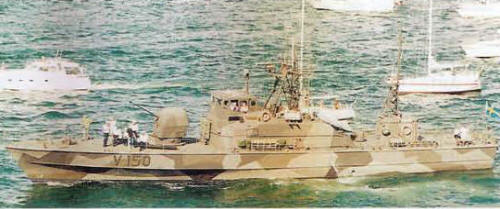

Jägaren 1997
© Ivan Gogin, 2018
