Hugin 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Hugin | P151 | Bergens MV, Bergen, Norway | 3.6.1977 | 3.7.1978 | stricken 6.2001 | ||
| Munin | P152 | Bergens MV, Bergen, Norway | 3.10.1977 | 3.7.1978 | stricken 6.2001 | ||
| Magne | P153 | Bergens MV, Bergen, Norway | 9.1.1978 | 12.10.1978 | stricken 91995 | ||
| Mode | P154 | Westermoen, Mandal, Norway | 8.8.1978 | 12.1.1979 | stricken 6.2001 | ||
| Vale | P155 | Westermoen, Mandal, Norway | 3.10.1978 | 26.4.1979 | stricken 9.1995 | ||
| Vidar | P156 | Westermoen, Mandal, Norway | 6.3.1979 | 10.8.1979 | stricken 6.2001 | ||
| Mjölner | P157 | Westermoen, Mandal, Norway | 12.6.1979 | 24.10.1979 | stricken 9.1995 | ||
| Mysing | P158 | Westermoen, Mandal, Norway | 18.9.1979 | 14.2.1980 | stricken 9.1995 | ||
| Kaparen | P159 | Bergens MV, Bergen, Norway | 8.8.1979 | 7.8.1980 | stricken 2004 | ||
| Väktaren | P160 | Bergens MV, Bergen, Norway | 12.12.1979 | 19.9.1980 | stricken 2004 | ||
| Snapphanen | P161 | Bergens MV, Bergen, Norway | 18.3.1980 | 14.1.1981 | stricken 2004 | ||
| Spejaren | P162 | Bergens MV, Bergen, Norway | 13.5.1980 | 21.3.1981 | stricken 6.2008 | ||
| Styrbjörn | P163 | Bergens MV, Bergen, Norway | 15.8.1980 | 26.10.1981 | stricken 2004 | ||
| Starkodder | P164 | Bergens MV, Bergen, Norway | 11.11.1980 | 24.8.1981 | stricken 2004 | ||
| Tordön | P165 | Bergens MV, Bergen, Norway | 3.2.1981 | 26.10.1981 | stricken 6.2008 | ||
| Tirfing | P166 | Bergens MV, Bergen, Norway | 17.9.1981 | 21.1.1982 | stricken 2004 |
|
Displacement standard, t |
140 |
|
Displacement full, t |
170 |
|
Length, m |
33.6 pp 36.6 oa |
|
Breadth, m |
6.30 |
|
Draught, m |
1.70 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 20V672 TB90 diesels |
|
Power, h. p. |
7200 |
|
Max speed, kts |
35 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 550(35) |
|
Armament |
6 x 1 RB-12 SSM (6 Penguin Mk 2) or (2 x 1 RB-12 SSM (2 Penguin Mk 2), 24 mines) or (2 x 1 RB-12 SSM (2 Penguin Mk 2), 2 DCR), 1 x 1 - 57/70 SAK57 Mk 1 |
| Electronic equipment | Scanter 009, 9LV200 Mk 2 radars, SQ3D/SF sonar |
| Complement |
22 |
Project history: Similar to Norwegian Snögg class. Main diesels were taken from retired Spica class craft.
Modernizations: late 1980s, all: + EWS-905 ECM suite
1992-1994, Kaparen, Väktaren, Snapphanen, Spejaren, Styrbjörn, Starkodder, Tordön, Tirfing: diesels were replaced by 2 MTU 16V396 TB94 (6400hp, 32kts, 550(32)kts); - 2 x 1 RB-12 SSM, SQ3D/SF sonar; + 4 x 9 ELMA ASWRL, 9GR600 radar, SA-950, ST-570 sonars
Naval service: No significant events.

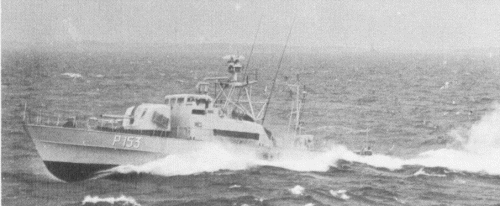

Magne 1980

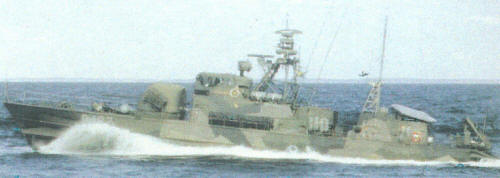

Styrbjörn 2003
