Göteborg 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Göteborg | K21 | 422 | Karlskronavarvet, Karlskrona | 10.2.1986 | 12.4.1989 | 15.2.1990 | stricken 2006 |
| Gävle | K22 | 423 | Karlskronavarvet, Karlskrona | 21.3.1988 | 23.3.1990 | 1.2.1991 | in service (2019) |
| Kalmar | K23 | 424 | Karlskronavarvet, Karlskrona | 10.9.1988 | 1.11.1990 | 1.9.1991 | stricken 2006 |
| Sundsvall | K24 | 425 | Karlskronavarvet, Karlskrona | 20.11.1989 | 29.11.1991 | 7.7.1993 | in service (2019) |
|
Displacement standard, t |
300 |
|
Displacement full, t |
400 |
|
Length, m |
50.0 pp 57.0 oa |
|
Breadth, m |
7.30 wl 8.00 oa |
|
Draught, m |
1.93 hull |
|
No of shafts |
3 waterjets |
|
Machinery |
3 MTU 16V396 TB94 diesels |
|
Power, h. p. |
8400 |
|
Max speed, kts |
32 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 500(30) |
|
Armament |
4 x 2 RBS-15 SSM (8 RBS-15), 1 x 1 - 57/70 SAK57 Mk 2, 1 x 1 - 40/70 Bofors 315, 4 - 400 TT (Tp45), 4 x 9 ELMA ASWRL, 40 mines instead of SSMs |
| Electronic equipment | PN-612, Pilot, Sea Giraffe 150HC, 2x 9GR400 radars, 2x 9LV200 Mk 3 e/o systems, SS304 Spira, TSM2643 Salmon sonars, AR-700 ECM suite, 2x 9CM300 decoy RL, 9LV Mk 3 CCS |
| Complement |
43 |
Project history: Two other ships of the class, Helsingborg and Härnösand, were never ordered. All 8 SSMs can be replaced by 4 additional 400mm TTs or 2 fast RIBs.
Modernizations: 2000, Gävle, 2005, Sundsvall: - 1 x 1 - 40/70, SS304 Spira sonar, AR-700 ECM suite, 2x 9CM300 decoy RL, 9LV Mk 3 CCS; + 1 x 1 - 40/70 Sea Trinity, 2 x 1 - 12.7/90, Hydra sonar, CS-5460, RAN-1101 ECM suites, 2x MASS decoy RL
2014-2015, both survived: - 4 x 2 RBS-15 SSM, 9LV Mk 3 CCS; + 4 x 2 RBS-15M Mk 3 SSM (8 RBS-15M Mk 3), 9LV Mk 3 SESYM CCS
2017, both survived: - TSM2643 Salmon sonar; + ST2400 sonar
Naval service: No significant events.

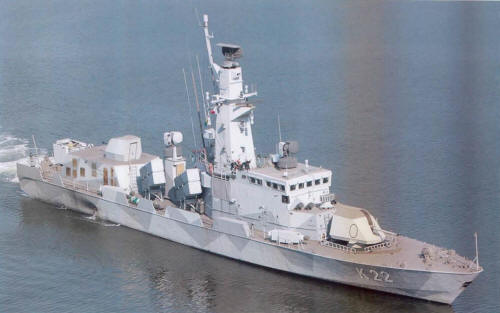

Gävle 2007
Many thanks to Wolfgang Stöhr for additional information on this page.
