Names |
V09 Dalarö V10 Sandhamn V11 Östhammar, 2008- SVK11 Östhammar |
|
Builders |
Djupviks varvet, Rönnäng: V09-11 |
|
Commissioned |
1984: V09, 10 1985: V11 2008: SVK11 (2nd time) |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
2002: V09-11 in service (2019): SVK11 (2nd time) |
|
Displacement standard, t |
|
|
Displacement full, t |
50 |
|
Length, m |
23.4 |
|
Breadth, m |
5.10 |
|
Draught, m |
1.10 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 8V396 TB83 diesels |
|
Power, h. p. |
2100 |
|
Max speed, kts |
30 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 40/70 Bofors 315, 2 x 1 - 7.6/90, mines |
| Electronic equipment | Terma TM-610 radar |
|
Complement |
7 + 3 passengers |
Project history: Ordered in 1983 in lieu of further torpedo boats.
Modernizations: 2008, Östhammar: was recommissioned with small arms only, 2x nav. radars
Naval service: Östhammar was recommissioned in 2008 as TS for reservists.

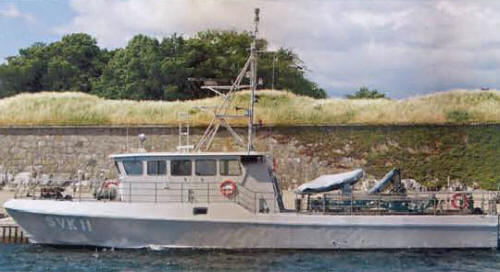

Östhammar 2008
