Names |
61 Torskär 62 Väderskär 63 Ekeskär 64 Skifteskär 65 Gråskär 66 Örskär 67 Vitaskär 68 Altarskär 69 Äggskär 70 Hojskär 71 Getorskär 72 Flaggskär 73 Häradsskär 74 Bredskär 75 Sprängskär 76 Hamnskär 77 Huvudskär |
|
Builders |
Bröderna Larsson, Kristinehamn: 61 - 70 Kustartilleriet Varv, Fårösund: 71 - 77 |
|
Commissioned |
1960 - 1961: 61 - 70 1966 - 1967: 71 - 77 |
|
Losses |
None |
|
Transfers |
None |
|
Discarding |
1995: 61, 62, 66, 75 1997: 69, 72 1998: 71 2000: 64, 67 2003: 63, 65, 68, 70, 74, 76 2006: 73 2016: 77 |
|
Displacement standard, t |
|
|
Displacement full, t |
28 |
|
Length, m |
21.1 |
|
Breadth, m |
4.60 |
|
Draught, m |
1.30 |
|
No of shafts |
3 |
|
Machinery |
61-70: 3 Volvo-Penta DSIR82 diesels 71-77: 3 Scania Vabis TIMD96B diesels |
|
Power, h. p. |
61-70: 535 71-77: 705 |
|
Max speed, kts |
61-70: 18 71-77: 22 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 20/70 Mk 7, 8 DC, mines |
| Electronic equipment | Simrad sonar |
|
Complement |
8 |

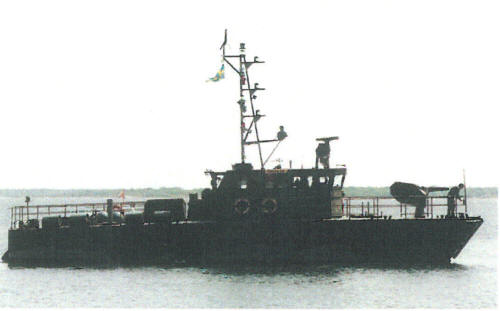

Project history: Patrol boat belonged to Coastal Artillery. Fitted for minelaying.
Modernizations: 1980s, all: + Decca RM914C radar
Naval service: no significant events.
1994
