| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| (ex-Karl Heinz, ex-Hai) | T001 | Yachtwerft, Berlin, Germany | 11.1990 // 2000 | in service (2020) |
|
Displacement standard, t |
286 |
|
Displacement full, t |
320 |
|
Length, m |
29.3 pp 30.9 oa |
|
Breadth, m |
8.27 |
|
Draught, m |
2.50 |
|
No of shafts |
1 |
|
Machinery |
1 SKL 6VD-26/20AC1 diesel |
|
Power, h. p. |
720 |
|
Max speed, kts |
10.5 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1800(10) |
|
Armament |
small arms |
|
Electronic equipment |
SRN-402 radar |
|
Complement |
13 |
Project history: Project 414 tug built for Volksmarine but completed just after unification of Germanys and not required by Bundesmarine. Ship operated as commercial tug until laid up about in 1996. After repair she was sold to Suriname in 2000 for employing as tug and patrol.
Modernizations: None.
Naval service: No significant events.

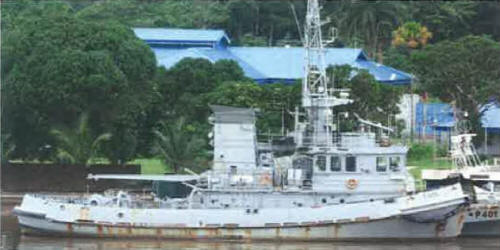

T001 2011
