El Gihad 1965
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| الجهاد [El Gihad] | PB1 | Mosor SY, Trogir, Yugoslavia | 1961 | discarded 1988 | |||
| الحرية [El Horriya] | PB2 | Mosor SY, Trogir, Yugoslavia | 1961 | discarded 1988 | |||
| الإستقلال [El Istiqlal] | PB3 | Mosor SY, Trogir, Yugoslavia | 1962 | discarded 1988 | |||
| الشاب [El Shaab] | PB4 | Mosor SY, Trogir, Yugoslavia | 1962 | discarded 1987 |
|
Displacement standard, t |
86 |
|
Displacement full, t |
100 |
|
Length, m |
31.4 pp 35.0 oa |
|
Breadth, m |
4.90 |
|
Draught, m |
1.70 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 12V493 diesels |
|
Power, h. p. |
1820 |
|
Max speed, kts |
20 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1200(12) |
|
Armament |
1 x 1 - 40/60 Mk 3, 1 x 1 - 20/70 Mk 10, 2 x 1 - 7.6/90 |
|
Sensors |
radar |
|
Complement |
17 |
Project history: First warships of Sudanese Navy.
Modernizations: None.
Naval service: No significant events.

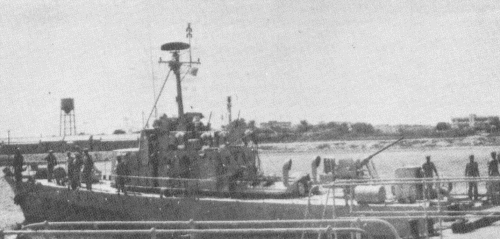

Gihad
