SURAKSHA patrol ship (1988/2017)

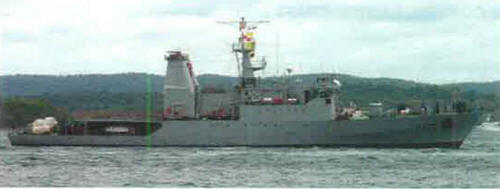

Sagara 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| සාගර [Sagara] (ex-वराह [Varaha]) | P622 | Goa SYd, India | 5.11.1990 | 11.3.1992 // 2.2007 | in service (2019) | ||
| සයුරළ [Sayurala] (ex-विग्रह [Vigraha]) | P623 | Mazagon Dock, Bombay, India | 1.12.1988 | 12.4.1990 // 23.8.2008 | to India 1.2011 (विग्रह [Vigraha]) | ||
| සමුද්රරක්ෂ [Samudraraksha] (ex-वरुणा [Varuna]) | Mazagon Dock, Bombay, India | 1.2.1984 | 27.2.1988 // 23.8.2017 | Coast Guard, in service (2019) |
|
Displacement standard, t |
1064 |
|
Displacement full, t |
1224 |
|
Length, m |
74.1 |
|
Breadth, m |
11.4 |
|
Draught, m |
3.50 |
|
No of shafts |
2 |
|
Machinery |
2 SEMT-Pielstick 16PA6 V280 diesels |
|
Power, h. p. |
12800 |
|
Max speed, kts |
22 |
|
Fuel, t |
diesel oil 180 |
|
Endurance, nm(kts) |
4000(16) |
|
Armament |
1 x 1 - 30/80 Medak CRN-91, 2 x 2 - 14.5/93, 2 x 1 - 12.7/79, 1 helicopter (Bell 212) |
|
Sensors |
Decca 1230, Decca 1226 radars |
|
Complement |
95 |
Project history: Former Indian Coast Guard ships of Vikram class.
Modernizations: None.
Naval service: No significant events.
Sagara 2008
