SRI LANKA NAVY (SRI LANKA)

COASTAL FORCES

RANASUVU large patrol boats (1991-1992)

Name No Yard No Builder Laid down Launched Comp Fate
රණසුවූ [Ranasuvu] P320   Guijiang SYd, China     11.1991 sunk 13.4.1995
රණවිරු [Ranawiru] P321   Guijiang SYd, China     11.1991 sunk 19.7.1996
රණරිසි [Ranarisi] P322   Guijiang SYd, China     14.7.1992 in service (2019)



Displacement standard, t



Displacement full, t

150

Length, m

41.0

Breadth, m

5.40

Draught, m

1.60

No of shafts

4

Machinery

4 M-50F-4 diesels

Power, h. p.

4800

Max speed, kts

29

Fuel, t

diesel oil

Endurance, nm(kts)

750(16)

Armament

1 x 2 - 30/75 GCM-A03, 1 x 2 - 25/82 type 61, 2 x 2 - 14.5/93, 2 x 1 - 12.7/79

Sensors

Decca radar

Complement

44

Project history: Chinese type 062 with modified machinery and armament.

Modernizations: None.

Naval service: Ranasuvu was destroyed by Tamil Tigers 13.4.1995, Ranawiru was destroyed by Tamil Tigers 19.7.1996.

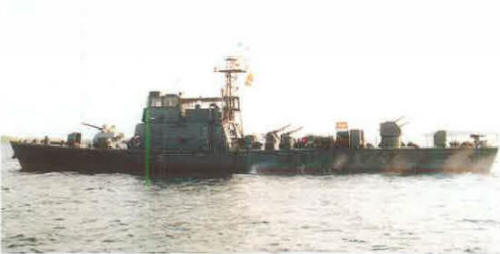

Ranarisi 2003
