Names |
Mk I: P450, 451 Mk II: P490-497 Mk III: P410-424 Mk IV: P430-439 |
|
Builders |
Colombo DYd: P410-424, 430-439, 450, 451, 490-497 |
|
Commissioned |
1996: P450, 451 1997-1999: P490-497 2000-2004: P410-424 2005: P430-439 |
|
Losses |
P413 (Tamil Tigers, date unknown), P416 (Tamil Tigers, date unknown), P418 (Tamil Tigers 11.5.2006), P431 (Tamil Tigers, date unknown), P434 (Tamil Tigers 2009), P438 (Tamil Tigers 22.3.2008), P493 (Tamil Tigers 21.3.2001), P495 (Tamil Tigers, date unknown), P496 (Tamil Tigers 21.3.2001) |
|
Transfers |
None |
|
Discarding |
in service (2019): P410-412, 414, 415, 417, 419-424, 430, 432, 433, 435-437, 439, 450, 451, 490-492, 494, 497 |
|
Displacement standard, t |
56 |
|
Displacement full, t |
74 |
|
Length, m |
24.8 |
|
Breadth, m |
6.00 |
|
Draught, m |
1.20 |
|
No of shafts |
2 |
|
Machinery |
Mk I, II: 2 MTU 12V396 TE94 diesels Mk III, IV: 2 Deutz TBD620 16V diesels |
|
Power, h. p. |
4570 |
|
Max speed, kts |
46 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
850(16) |
|
Armament |
1 x 1 - 23/87 Typhoon, 1 x 1 - 20/70 Mk 10, 4 x 1 - 12.7/79, 8 x 1 - 7.6/90 |
|
Sensors |
Furuno FR8250D radar, MSIS e/o system |
|
Complement |
15 |
Project history: Aluminium construction. Built by Colombo DYd to the Israeli 'Shaldag' design.
Modernizations: none.
Naval service: No significant events.

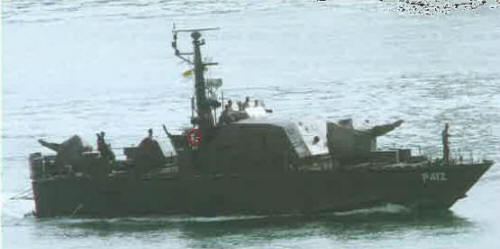

P412 2013
