similar P451 1985
|
Names |
P441, late 1990s- P460 P496, late 1990s- P461 P497, late 1990s- P462 P463-465 |
|
Builders |
Israeli Aircraft Industries, Be'er Sheva, Israel: P441, 463-465, 496, 497 |
|
Commissioned |
1995: P441 1996: P461, 462 1998: P463 1999: P464, 465 |
|
Losses |
P461 (Tamil Tigers 2006), P463 (Tamil Tigers 7.4.2000) |
|
Transfers |
None |
|
Discarding |
in service (2019): P460, 462, 464, 465 |
|
Displacement standard, t |
50 |
|
Displacement full, t |
54 |
|
Length, m |
24.0 |
|
Breadth, m |
5.60 |
|
Draught, m |
1.50 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 12V396 TE94 diesels |
|
Power, h. p. |
4570 |
|
Max speed, kts |
50 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
700(30) |
|
Armament |
1 x 2 - 23/87 Typhoon, 1 x 1 - 20/70 Mk 10, 4 x 1 - 12.7/79, 6 x 1 - 7.6/90 |
|
Sensors |
Koden MD3220 Mk 2 radar, MSIS e/o system |
|
Complement |
10 |

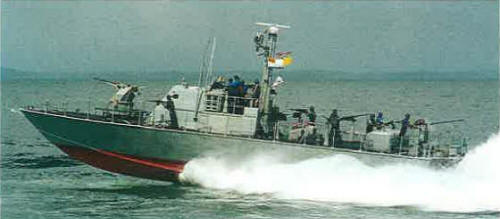

Project history: Israeli 'Super Dvora Mk 2' class. Aluminium construction.
Modernizations: none.
Naval service: No significant events.
1999
