Names |
Peral |
|
Builders |
Carraca, Cadiz: Peral |
|
Completed |
6/1890: Peral |
|
Losses |
None |
|
Transfers |
None |
|
Discarding |
1909: Peral |
|
Displacement standard, t |
|
|
Displacement normal, t |
/ 87 |
|
Length, m |
21.3 |
|
Breadth, m |
2.60 |
|
Draught, m |
|
|
No of shafts |
2 |
|
Machinery |
2 electric motors |
|
Power, h. p. |
60 |
|
Max speed, kts |
/ 10 |
|
Fuel, t |
battery only |
|
Endurance, nm(kts) |
|
|
Armament |
1 - 356 TT (bow, 3) |
|
Complement |
6 |
| Diving depth operational, m | 50 |
Project history: Designed by Lt Isaac Peral y Caballero. She dived and surfaced using ballast tanks and vertical screws, below the cigar-shaped hull fwd and aft. The motors were powered by accumulators, and two spare Schwarzkopf torpedoes could be carried.
Modernizations: None.
Naval service: No significant events.

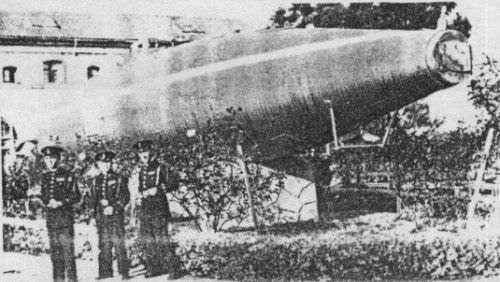

Peral
