Almirante García de Los Reyes 1975
Isaac Peral 1975
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Almirante García de los Reyes (ex-Kraken) | E1, 1961- S31 | Manitowoc SB, USA | 12.1943 | 30.4.1944 | 9/1944 //24.10.1959 | stricken 4.1982 | |
| Isaac Peral (ex-Ronquil) | S32 | Portsmouth N Yd, USA | 9.1943 | 27.1.1944 | 4.1944 // 1.7.1971 | stricken 6.1984 | |
| Narciso Monturiol (ex-Picuda, ex-Obispo) | S33 | Portsmouth N Yd, USA | 3.1943 | 12.7.1943 | 10/1943 // 1.10.1972 | stricken 4.1977 | |
| Cosme García (ex-Bang) | S34 | Portsmouth N Yd, USA | 4.1943 | 30.8.1943 | 12/1943 // 1.10.1972 | stricken 9.1982 | |
| Narciso Monturiol (ex-Jallao) | S35 | Manitowoc SB, USA | 9.1943 | 12.3.1944 | 7/1944 // 26.6.1974 | stricken 12.1984 |
| Data variant | E1 (Fleet Snorkel) |
|
Displacement standard, t |
|
|
Displacement normal, t |
1830 / 2440 |
|
Length, m |
95.0 |
|
Breadth, m |
8.31 |
|
Draught, m |
5.20 |
|
No of shafts |
2 |
|
Machinery |
4 General Motors diesel-generators / 4 electric motors |
|
Power, h. p. |
4610 / 2700 |
|
Max speed, kts |
20 / 10 (6.5 with snorkel) |
|
Fuel, t |
diesel oil 378 - 472 |
| Endurance, nm(kts) | 11000 (10) / 96 (2) |
|
Armament |
10 - 533 TT (24 torpedoes or 40 mines, 6 bow, 4 stern) |
|
Electronic equipment |
SS, ST, SV radars, WFA, JT sonars, APR-1 ECM suite |
|
Complement |
82 |
|
Diving depth operational, m |
120 |
| Data variant | S32-35 (GUPPY IIA) |
|
Displacement standard, t |
|
|
Displacement normal, t |
1848 / 2440 |
|
Length, m |
93.6 |
|
Breadth, m |
8.20 |
|
Draught, m |
5.20 |
|
No of shafts |
2 |
|
Machinery |
SS340, 365, 368, 377: 3 General Motors diesel-generators / 4 electric motors SS382, 385, 391, 394, 396, 402, 410, 415: 3 Fairbanks-Morse diesel-generators / 4 electric motors |
|
Power, h. p. |
3430 / 5400 |
|
Max speed, kts |
17 / 15 |
|
Fuel, t |
diesel oil 378 - 472 |
| Endurance, nm(kts) | 11000 (10) / 96 (2) |
|
Armament |
10 - 533 TT (24 torpedoes or 40 mines, 6 bow, 4 stern) |
|
Electronic equipment |
BPS-1, BPS-4, SS radars, BQR-2, BQS-2, SQR-3 sonars, BLR-1 ECM suite |
|
Complement |
82 |
|
Diving depth operational, m |
120 |
Project history:
E1 was originally built 1943-44 and transferred in 1959 after
modernization under Fleet Snorkel design. Other submarines were modernized under
GUPPY IIA program.
Modernizations: 1965, Almirante García de los Reyes: aft TTs
were converted for firing ASW torpedoes (22 torpedoes at all).
Naval service: Although due for deletion in 1975, Almirante García de los Reyes was retained in service until 1982, because of machinery defects in Narciso Monturiol. S33 Narciso Monturiol was laid up with mechanical defects in 1975; when deleted in 1977 her name was transferred to S35.

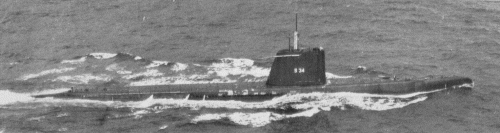

Almirante García de los Reyes 1977

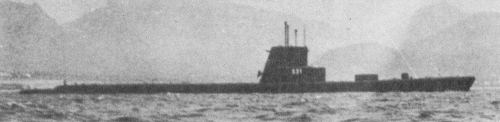

Cosme García 1973
