LSM1 1963
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| LSM1 (ex-LSM329) | Pullman Standard Car, Chicago, USA | 1944 | 1944 | 10.1944 // 1960 | accommodation ship 1976 | ||
| LSM2 (ex-LSM331) | Pullman Standard Car, Chicago, USA | 6/1944 | 13.10.1944 | 11.1944 // 1960 | accommodation ship 1976 | ||
| LSM3 (ex-LSM343) | Pullman Standard Car, Chicago, USA | 1944 | 1945 | 2.1945 // 1960 | stricken 1974 |
|
Displacement standard, t |
930 |
|
Displacement full, t |
1095 |
|
Length, m |
59.9 wl 62.0 oa |
|
Breadth, m |
10.5 |
|
Draught, m |
landing: 1.07 fore, 2.13 aft |
|
No of shafts |
2 |
|
Machinery |
4 General Motors diesels |
|
Power, h. p. |
2800 |
|
Max speed, kts |
12.5 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 4900 (12) |
|
Armament |
1 x 2 - 40/60 Mk 1 |
| Military load |
5 medium or 3 heavy tanks or 6 LVT or 9 DUKW, 48 - 54 marines |
| Electronic equipment | nav. radar |
| Complement | 60 |
Project history: USN LSM-type medium landing ships.
Modernizations:
None.Naval service: No significant events.

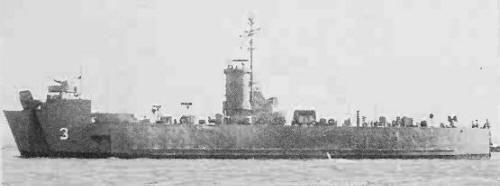

LSM3 1969
