BDK6 small landing ships (1966)

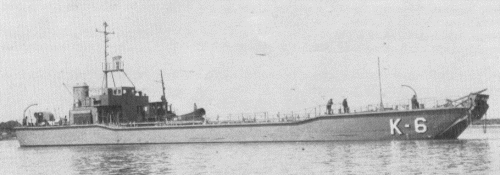

BDK6 1970

Name	No	Yard No	Builder	Laid down	Launched	Comm	Fate
BDK6	K6, 1971- LCT6, 1986- A06		Bazán, La Carraca	1965	1966	12/1966	logistic support craft 1986, stricken 2004
BDK7	K7, 1971- LCT7, 1986- A07		Bazán, La Carraca	1965	1966	12/1966	logistic support craft 1986, stricken 1998
BDK8	K8, 1971- LCT8, 1986- A08		Bazán, La Carraca	1965	1966	12/1966	logistic support craft 1986, stricken 2004

Displacement standard, t
579

Displacement full, t
665

Length, m

59.0

Breadth, m
11.9

Draught, m

1.30

No of shafts

2

Machinery

2 MGO diesels

Power, h. p.

1040

Max speed, kts

9.5

Fuel, t

diesel oil

Endurance, nm(kts) 1500(9)

Armament

1 x 1 - 81/12 mortar, 2 x 1 - 12.7/90

Electronic equipment radar

Military load
5 LVTs or 11 trucks

Complement
17

Project history: Spanish-built landing craft of French EDIC type.

Modernizations: None.

Naval service: No significant events.

BDK6 1976

SPANISH NAVY (SPAIN)

AMPHIBIOUS SHIPS AND CRAFTS

BDK6 small landing ships (1966)

Displacement standard, t	579
Displacement full, t	665
Length, m	59.0
Breadth, m	11.9
Draught, m	1.30
No of shafts	2
Machinery	2 MGO diesels
Power, h. p.	1040
Max speed, kts	9.5
Fuel, t	diesel oil
Endurance, nm(kts)	1500(9)
Armament	1 x 1 - 81/12 mortar, 2 x 1 - 12.7/90
Electronic equipment	radar
Military load	5 LVTs or 11 trucks
Complement	17
