BDK3 small landing ships (1957)

BDK3 1960

Name	No	Yard No	Builder	Laid down	Launched	Comm	Fate
BDK3	K3, 1971- LCT3		Bazán, Ferrol	1958	1959	6/1959	stricken 1984
BDK4	K4, 1971- LCT4		Bazán, Ferrol	1958	1959	6/1959	stricken 1985
BDK5	K5, 1971- LCT5		Bazán, Ferrol	1958	1959	6/1959	stricken 1985

Displacement standard, t
562

Displacement full, t
902

Length, m

56.6

Breadth, m
11.6

Draught, m

1.70

No of shafts

2

Machinery

2 M60 V8 AS diesels

Power, h. p.

1000

Max speed, kts

8.5

Fuel, t

diesel oil

Endurance, nm(kts) 1000(7)

Armament

2 x 1 - 20/70 Mk 7

Military load
300 t of cargo or 400 troops

Complement
20

Project history: Spanish-built landing craft of British LCT(4) type.

Modernizations: None.

Naval service: No significant events.

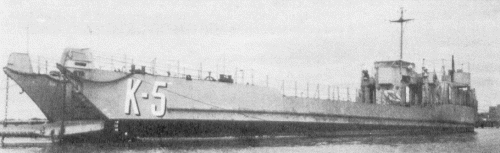

BDK5 1971

SPANISH NAVY (SPAIN)

AMPHIBIOUS SHIPS AND CRAFTS

BDK3 small landing ships (1957)

Displacement standard, t	562
Displacement full, t	902
Length, m	56.6
Breadth, m	11.6
Draught, m	1.70
No of shafts	2
Machinery	2 M60 V8 AS diesels
Power, h. p.	1000
Max speed, kts	8.5
Fuel, t	diesel oil
Endurance, nm(kts)	1000(7)
Armament	2 x 1 - 20/70 Mk 7
Military load	300 t of cargo or 400 troops
Complement	20
