Galicia 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Galicia (ex-San Marcos) | TA31, 1986- L31 | Philadelphia N Yd, USA | 9.1944 | 10.1.1945 | 4.1945 // 1.7.1971 | stricken 1.1988 |
|
Displacement standard, t |
4490 |
|
Displacement full, t |
9375 |
|
Length, m |
138.4 wl 139.5 oa |
|
Breadth, m |
22.0 |
|
Draught, m |
4.83 |
|
No of shafts |
2 |
|
Machinery |
2 sets Skinner geared steam turbines, 2 Babcock & Wilcox boilers |
|
Power, h. p. |
7000 |
|
Max speed, kts |
15.4 |
|
Fuel, t |
oil 1770 |
| Endurance, nm(kts) | 7400 (15) |
|
Armament |
2 x 4 - 40/60 Mk 2, 2 x 2 - 40/60 Mk 1, helicopter deck |
| Military load | 3 LCU or 18 LCM(3) or 1347 t of cargo or 27 tanks, 137 troops |
|
Electronic equipment |
SPS-10, nav. radars |
|
Complement |
254 |
Project history: Former USN Cabildo class LSD.
Modernizations:
None.Naval service: No significant events.

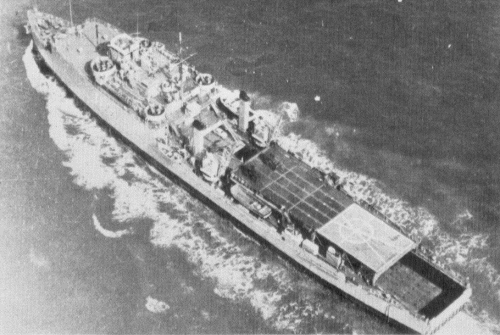

Galicia 1975
