FOCA small landing ships (1944-1945/1948)

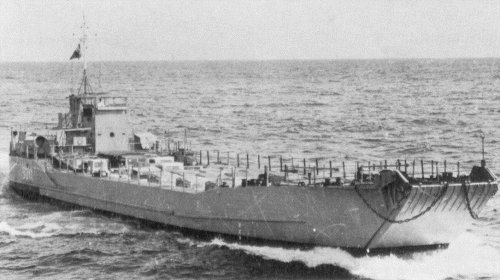

Foca 1950

Name	No	Yard No	Builder	Laid down	Launched	Comm	Fate
Foca (ex-LCT1253), 1950s- BDK1	K1, 1971- LCT1		UK		1944	1944 // 11.1948	stricken 1978
Morsa (ex-LCT1323), 1950s- BDK2	K2, 1971- LCT2		UK		28.3.1945	1945 // 11.1948	stricken 1983

Displacement standard, t
350

Displacement full, t
640

Length, m

57.1

Breadth, m
11.8

Draught, m

1.36 deep load

No of shafts

2

Machinery

2 Paxman diesels

Power, h. p.

920

Max speed, kts

10

Fuel, t

diesel oil 51

Endurance, nm(kts) 1100(8)

Armament

2 x 1 - 20/70 Mk 7

Military load
6 40t or 9 30t tanks or 200 troops or 350 t cargo

Complement
12

Project history: Former British LCT(4) type landing craft.

Modernizations: None.

Naval service: No significant events.

BDK1 or 2

SPANISH NAVY (SPAIN)

AMPHIBIOUS SHIPS AND CRAFTS

FOCA small landing ships (1944-1945/1948)

Displacement standard, t	350
Displacement full, t	640
Length, m	57.1
Breadth, m	11.8
Draught, m	1.36 deep load
No of shafts	2
Machinery	2 Paxman diesels
Power, h. p.	920
Max speed, kts	10
Fuel, t	diesel oil 51
Endurance, nm(kts)	1100(8)
Armament	2 x 1 - 20/70 Mk 7
Military load	6 40t or 9 30t tanks or 200 troops or 350 t cargo
Complement	12
