Serviola 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Serviola | P71 | Bazán, Ferrol | 17.10.1989 | 10.5.1990 | 22.3.1991 | in service (2019) | |
| Centinela | P72 | Bazán, Ferrol | 19.1.1990 | 30.10.1990 | 24.9.1991 | in service (2019) | |
| Vigía | P73 | Bazán, Ferrol | 30.10.1990 | 12.4.1991 | 24.3.1992 | in service (2019) | |
| Atalaya | P74 | Bazán, Ferrol | 14.12.1990 | 22.11.1991 | 29.6.1992 | in service (2019) |
|
Displacement standard, t |
820 |
|
Displacement full, t |
1150 |
|
Length, m |
63.0 wl 68.7 oa |
|
Breadth, m |
10.4 |
|
Draught, m |
3.40 |
|
No of shafts |
2 |
|
Machinery |
2 MTU-Bazán 16V956 TB91 diesels |
|
Power, h. p. |
7500 |
|
Max speed, kts |
20 |
|
Fuel, t |
diesel oil 247 |
|
Endurance, nm(kts) |
8000(12) |
|
Armament |
1 x 1 - 76/50 Mk 26, 2 x 1 - 12.7/90, helicopter deck |
|
Electronic equipment |
P71: Decca 2459, Decca 2690 radars, Alcor-C e/o director, ULQ-13 ECM suite, Hispano Mini CCS P72, 74: Decca 2459, Decca 2690 radars, MSP4000 e/o director, Hispano Mini CCS P73: Decca 2459, Decca 2690 radars, Alcor-C e/o director, Hispano Mini CCS |
|
Complement |
42 |
Project history: Ordered in 1989 for use as offshore patrol vessels. A planned fifth unit was not ordered. Design based on the Águila class for the Mexican Navy. Originally referred to as the Milano class while under construction. Platform for an AB-212-sized helicopter but no hangar. Carry two rigid inflatable inspection boats and have three 80-m³/hr firefighting pumps. The 76mm gun, from surplus stocks, is controlled by an Alcor-C optronic director or locally.
Modernizations: None.
Naval service: No significant events.

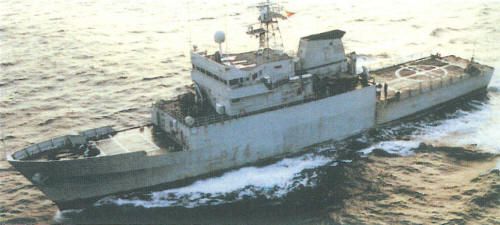

Atalaya 2003
