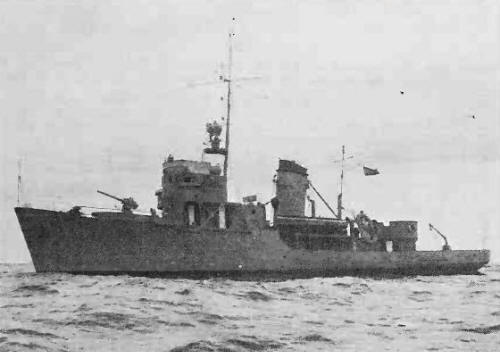

Pegaso 1970
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Pegaso | W21 | Bazán, Cartagena | 1951 | 1951 | stricken 3.1974 | ||
| Procyon | W22 | Bazán, Cartagena | 1951 | 1951 | stricken 3.1974 |
|
Displacement standard, t |
436 |
|
Displacement full, t |
498 |
|
Length, m |
42.0 |
|
Breadth, m |
8.24 |
|
Draught, m |
2.88 |
|
No of shafts |
1 |
|
Machinery |
1 VTE |
|
Power, h. p. |
532 |
|
Max speed, kts |
12 |
|
Fuel, t |
coal 200 |
| Endurance, nm(kts) | 3500(9) |
|
Armament |
1 x 1 - 76/50 Vickers TR, 2 x 1 - 20/70 Mk 4 |
| Electronic equipment | none |
|
Complement |
39 |
Project history: Patrols, only units built of the twelve Rigel class coastguard vessels, but under revised design. They were also rated as coast guard vessels and used as TS for the Naval School.
Modernizations: late 1960s, both: - 1 x 1 - 76/50; + radar
Naval service: No significant events.
Procyon
