SPANISH NAVY (SPAIN)

ESCORTS

CIES patrol vessels (1952)

Name No Yard No Builder Laid down Launched Comp Fate
Cíes (ex-...) W31       1948 1948 // 12.1952 stricken 1973
Sálvora (ex-Virgen de la Almudena, ex-Mendi Eder) W32, late 1970s- PVZ11, 1980s- P20       1948 1948 // 9.1954 stricken 1990



Displacement standard, t

180

Displacement full, t

275

Length, m

31.0

Breadth, m

6.10

Draught, m

2.50

No of shafts

1

Machinery

1 Sulzer diesel

Power, h. p.

400

Max speed, kts

12

Fuel, t

diesel oil 25

Endurance, nm(kts)

Armament

1 x 1 - 20/70 Mk 4

Electronic equipment Decca RM914 radar

Complement

31

Project history: Trawler-type patrols, purchased in 1952 and rates as fishery protection vessels.

Modernizations: 1980s: radar was replaced by Furuno

Naval service: No significant events.

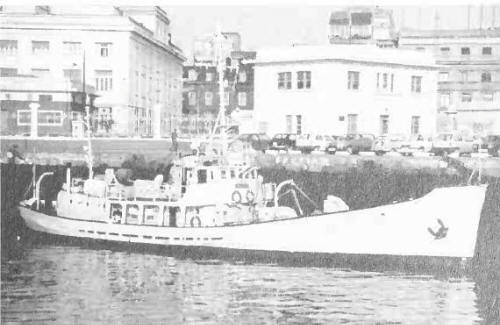

Sálvora 1987
