Arnomendi 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Arnomendi | P63 | Freire, Vigo | 6.1.2000 | 13.12.2000 | Fishery protection till 1.2001, in service (2019) | ||
| Tarifa | P64 | Freire, Vigo | 11.11.2003 | 22.6.2004 | in service (2019) |
|
Displacement standard, t |
1500 |
|
Displacement full, t |
1965 |
|
Length, m |
66.5 |
|
Breadth, m |
10.5 |
|
Draught, m |
4.35 |
|
No of shafts |
1 |
|
Machinery |
1 Krupp-MaK 8M25 diesel |
|
Power, h. p. |
3265 |
|
Max speed, kts |
16 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
22000(16) |
|
Armament |
2 x 1 - 12.7/90, helicopter deck |
|
Electronic equipment |
2x Furuno radars |
|
Complement |
37 |
Project history:Arnomendi was built for the Secretaria General de Pesca Maritima but transferred to the Navy 17.1.2001 by the Ministerio de Agricultura, Pesca, y Alimentación. Carry Ministry of Agriculture, Fisheries, and Food civilian personnel for inspection duties. Have helicopter platform but no hangar, equipped with a hook for towing and carry two 6.2m RIBs, each with two waterjet engines. Two fire monitors are located atop the foremast, and ships are equipped to support divers.
Modernizations: 2006, Tarifa: received anti-pollution equipment
Naval service: No significant events.

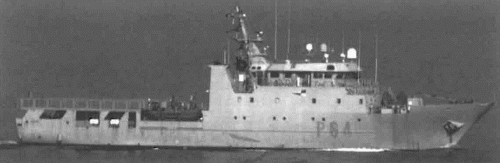

Tarifa 2010
